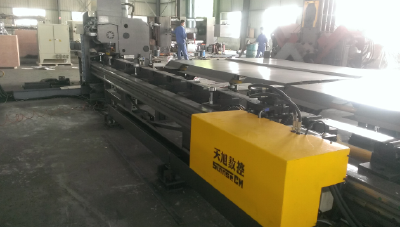

CNC Hydraulic Flat Bar Punching, Marking and Cutting Machine

CNC Hydraulic Flat Bar Punching, Marking and Cutting Machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 13 Sets per Month
  • Port: QING DAO
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2010-02-08
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  15
  • Place of Origin:  CHINA
  • Brand Name:  SUNRISE
  • Model Number:  TPL6004
  • Weight: 14000.000 kg

Applicable Industry: Used for flat bar punching, marking and cutting.

Model

TPL6004

Max.Workpiece length(mm)

6000

Workpiece width(mm)

40~120

Max.punching diameter(mm)

Φ26

Max.thickness (mm)

12

Punching force(KN)

1000

No.   of punching die-station

3

Marking force(KN)

800

No.   of marking die-station

1

Character size (mm)

14×10×19

No.   of character

12

Cutting force(KN)

1200

Cutting Mode aaaaaa

Flat end with single-blade cutting; Circular arc end with double-blade cutting

Feeding mode

CNC carriage

Feeding speed m/mi n

60

Precision

According with GB2694-2010

Programming mode

Input by keyboard, RS232 interface,

floppy disk and USB interface

Program function

Error display



Product Feature:

AAdopt CNC technology,servo motor infeeding,with high efficiency, stable workpiece precision.■Key hydraulic,pneumatic and electric parts all imported.

■Easy programming and can directly use the program data made by lofting software.■Computer with Chinese/English interface,easy operation, and can display the drawing of workpiece.aaa

■All marking,punching and shearing in automatic completeness.

■Only need to input size of workpiece,diameter of holes and quantity of workpiece when edit program.

■Fast marking speed.

■Flat end with single-balde cutting; Circular arc end with double-blade cutting;

■With self-diagnosis failures function.



  • Size:  15
  • Place of Origin:  CHINA
  • Brand Name:  SUNRISE
  • Model Number:  TPL6004
  • Weight: 14000.000 kg
