- Size: 16.5
- Place of Origin: CHINA
- Brand Name: SUNRISE
- Model Number: TAPM1516
- Weight: 16800.000 kg

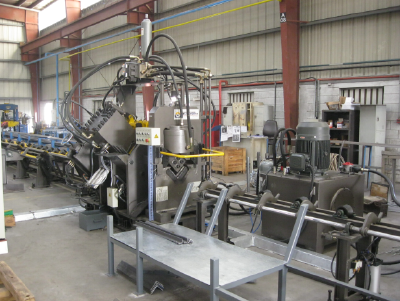

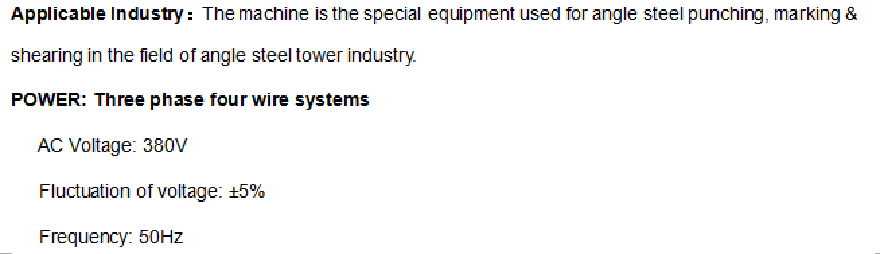

Product Feature:
1. Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision. Key hydraulic, pneumatic and electric parts all imported.
2. There are three sets of punch and die on each side which can install three kinds of punches with different diameters. Three sets of moulds can move altogether controlled by PLC to change the punching back mark.
3. Computer with Chinese/English interface, easy operation, and can display the drawing of workpiece. Easy programming and can directly use the program data made by lofting software. Only need to input size of workpiece, diameter of holes, back mark and quantity of workpiece when edit program.
4. CNC infeed carriage is driven by servo motor. The photoelectric encoder feeds back the information. Closed loop control to ensure high positioning precision.
5. All marking, punching and shearing in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength.
6. The control system consists of the host computer, CNC system, servo motor, PLC, external examination sensors, etc. Just input the dimension of workpiece, the processing will be created. Furthermore, the program can be stored, selected, displayed and communicated as per the workpiece No..
7. Marking unit adopts closed frame with good rigidity. Four groups of character boxes are fixed on the marking unit which can be selected by program. Marking stadia can be set at will.
8. Single blade shearing, shearing section is smooth and save raw material.
Specifications of TAPM1516:
Model | TAPM1 516 |
Angle size (mm) | L40х40х3～ L1 5 0х1 5 0х1 6 (Q 345 ) |
Max. Punching (dia. х thi.) (mm) | Φ26х1 6 |
Punching force (kN) | 1 2 00 |
Marking force (kN) | 1030 |
Cutting force (kN) | 24 00 |
Max. length of blank (m) | 1 4 |
Max. length of finished (m) | 1 0 |
Punches per side | 3 |
Group of Marking letters | 4 |
Stadia range (back mark)(mm) | 2 0 -1 70 (stepless) |
Stadia servo motor power (kW) | 1.3 × 2 YASKAWA |
NC carriage motor power (kW) | 4.4 YASKAWA |
Motor power of infeed conveyor(kW) | 2.2 |
Motor power of overturn rack (kW) | 2.2 |
Motor power of hydraulic station (kW) | 30 |
Dimension of letter (mm) | 14×10×19 |
CNC axes | 3 |
Cutting mode | Single blade cutting |
Max. f eeding speed of angle (m/min) | 6 0 |
Processing precision | Accordance with GB2694 |
Programming mode | Input by keyboard, RS232 interface, floppy disk and USB interface
floppy disk and USB interface |
Overall dimensions (mm) | ≈ 25 000×7500× 30 00 |
Gross Weight of machine (kg) | ≈1 68 00 |
Main components of TAPM1516:
No. | Name | Brand | |
Main Electric Components | |||
1 | PLC | Japan YOKOGAWA | |
2 | Servo Motor | Japan YASAKAWA | |
3 | Servo Driver | ||
4 | Business Computer | China Lenovo | |
5 | Photoelectric Switch | Autonics | |
6 | Rotary Encoder | SIMENS | |
7 | Proximity Switch | Autonics | |
Main Hydraulic Components | |||
1 | Small Valve Block | Electromagnetic Change Valve | Italy ATOS |
2 | Check Valve | Italy ATOS | |
3 | Main Valve Block | Electro hydraulic Valve | Italy ATOS |
4 | Electromagnetic Change Valve | Italy ATOS | |
5 | Hydraulic Station | Electromagnetic Overflow Valve | Italy ATOS |
6 | Unloading Valve | Italy ATOS | |
Main Pneumatic Components | |||
1 | Punching Unit | Padding Block Cylinder | Japan SMC |
2 | Magnetic Switch | Japan SMC | |
3 | Electromagnetic Gas-valve | Japan SMC | |
4 | Pneumatic Treatment Components | Japan SMC | |
5 | Carriage | Up Cylinder | Taiwan AirTAC |
6 | Clamp Cylinder | Taiwan AirTAC | |
7 | Electromagnetic Gas-valve | Taiwan AirTAC | |
8 | Unload Conveyor | Overturn Cylinder | Taiwan AirTAC |
9 | Electromagnetic Gas-valve | Taiwan AirTAC | |
