- Size: 34
- Place of Origin: China
- Brand Name: SUNRISE
- Model Number: TAPM0707
- Weight: 14000.000 kg

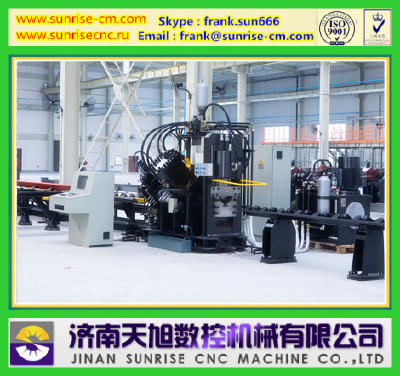

TAPM0707 High Speed CNC Punching, Marking & Shearing Line for Angles
(Linear guide feeding conveyor)
Applicable industry:
The machine is the automatic special equipment used for angle steel marking, punching, and shearing mainly in the field of angle steel tower industry.
Product composition:
This machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, punching unit, marking unit, cutting unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.
Specifications:
Model | T APM0707 |
F unctions | Punching , marking, shearing |
Angle size (mm) | 40х40х3~ 10 0х 10 0х 10 |
Max. Punching (dia. х thi.) (mm) | Φ26х 10 (8mm, Q345) |
Punching force (kN) | 600 |
Marking force (kN) | 800 |
Cutting force (kN) | 10 00 (Q345, 90 х 8mm) |
Max. length of blank (m) | 12 |
Max. length of finished (m) | 12 |
Punches per side | 2 |
Group of Marking letters | 4 |
Dimension of letter (mm) | 20 ×1 2 ×1 8 |
CNC axes | 3 |
Cutting mode | S ingle blade cutting |
Feeding speed of angle (m/min) | 8 0 |
Processing precision | Accordance with GB2694 |
Program function | Real time fault display |
Programming mode | Input by keyboard, RS232 interface, floppy disk and USB interface |
P rogram function | E rror display |
