- Size: 14
- Place of Origin: CHINA
- Brand Name: SUNRISE

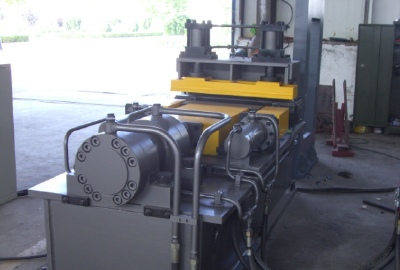

- Model Number: TKH1412
- Weight: 9800.000 kg
Main parameters:
Name | TKH 1412 | |
Angle size ( mm ) | ∠ 40х40х3 ~ ∠ 140х140х12 | |
Angle size ( ° ) | 5 、 10 、 15 | 20 、 25 |
Scope of opening & closing ( mm ) | 50 、 100 、 150 、 200 、 300 、 350 、 400 、 450 、 500 、 550 、 600 | 50 、 100 、 150 、 200 、 300 、 350 、 400 、 450 、 500 |
Times of stroke ( min -1 ) | 10~12 | |
W orking stroke ( mm ) | 200 | |
Power of motor (kW) | 15 | |
Nominal pressure (kN) | 80 | |
Nominal force (kN) | 800 | |
Overall dim . (L×W×H) ( mm ) | 2540×1290×1510 | |
Main components:
No. | Name | Model | Brand |
Main Electric Components | |||
1 | PLC | FX1N-24MR | Japan Mitsubishi |
2 | Low-voltage apparatus | All | France Schneider |
3 | Proximity switch | A ll | Germany BEDOOK |
Main Hydraulic Components | |||
1 | Hydraulic | M ain parts | Italy ATOS |
