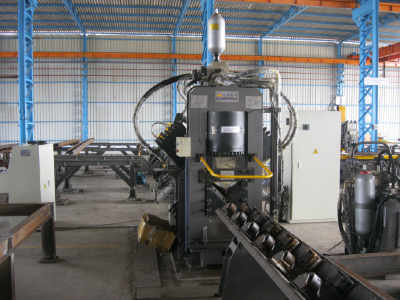

TAPM2020 CNC Punching, Shearing & Marking Line for Angles (ENHANCED)

TAPM2020 CNC Punching, Shearing & Marking Line for Angles (ENHANCED)

  • Min.Order Quantity: 1 Set
  • Supply Ability: 15 Sets per Month
  • Port: QING DAO
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2010-02-08
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  16.5
  • Place of Origin:  CHINA
  • Brand Name:  SUNRISE
  • Model Number:  TAPM2020
  • Weight: 17000.000 kg

Product Feature:

1. Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision. Key hydraulic, pneumatic and electric parts all imported.

2. There are three sets of punch and die on each side which can install three kinds of punches with different diameters. Three sets of moulds can move altogether controlled by PLC to change the punching back mark.

3. Computer with Chinese/English interface, easy operation, and can display the drawing of workpiece. Easy programming and can directly use the program data made by lofting software. Only need to input size of workpiece, diameter of holes, back mark and quantity of workpiece when edit program.

4. CNC infeed carriage is driven by servo motor. The photoelectric encoder feeds back the information. Closed loop control to ensure high positioning precision.

5. All marking, punching and shearing in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength.

6. The control system consists of the host computer, CNC system, servo motor, PLC, external examination sensors, etc. Just input the dimension of workpiece, the processing will be created. Furthermore, the program can be stored, selected, displayed and communicated as per the workpiece No..

7. Marking unit adopts closed frame with good rigidity. Four groups of character boxes are fixed on the marking unit which can be selected by program. Marking back mark can be set at will.

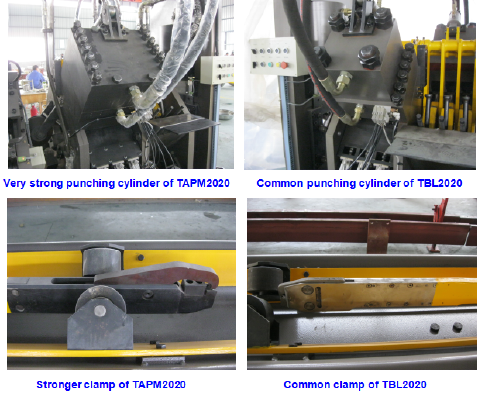

8. Single blade shearing. The punching, marking and shearing cylinders are bigger; NC carriage is vertical moveable type and stronger; the clamps are stronger.


Specifications:

Model

TAPM2020

Angle size (mm)

63х63х4 200х200х20

Max. Punching (dia. х thi.) (mm)

Φ26х20

Punching force (kN)

1 2 00

Marking force (kN)

103 0

Shearing force (kN)

21 00

Max. length of blank (m)

14

Max. length of finished (m)

14

Punches per side

3

Group of Marking letters

4

Stadia range (back mark)(mm)

20-170 (stepless)

Stadia servo motor power (kW)

1.3 × 2

NC carriage motor power (kW)

4.4

Motor power of infeed conveyor(kW)

2.2

Motor power of overturn rack (kW)

5.5

Motor power of hydraulic station (kW)

22

Dimension of letter (mm)

14×10×19 or 20 ×1 2 ×1 9

CNC axes

3

Shearing mode

D ouble blade cutting

Feeding speed of angle (m/min)

40

Processing precision

Accordance with GB2694-81

Programming mode

Input by keyboard, RS232 interface,

floppy disk and USB interface

floppy disk and USB interface

Overall dimensions (mm)

≈32000×7500×2600

Gross Weight of machine (kg)

≈1 7 000
