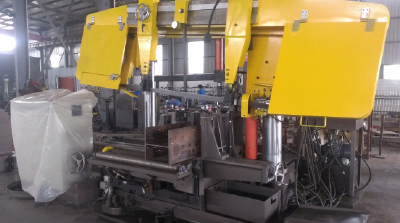

TBS1250 Band Sawing Machine

TBS1250 Band Sawing Machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 13 Sets per Month
  • Port: QING DAO
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2010-02-08
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  22
  • Place of Origin:  CHINA
  • Brand Name:  SUNRISE
  • Model Number:  TBS1250
  • Weight: 9000.000 kg

Applicable industry

Used for the sawing of H-shape steel, box beams, channel steel, angle steel and round steel of steel structure, bridge, three dimensional garages and petrol platform industries.

Product feature
■Double column design equipped with strong lathe bed, with fine function of absorbing vibration during high speed sawing.
■Can rotate itself and no need to rotate for longer work piece when beveling for 0°~45°, can keep the continuity of production.
■Saw blade driving with greater motor power and good transmission. Used for the specialized processing of various section steel of steel structure industry.
■Saw blade hydraulic automatic tensioning device, keep saw blade stable during high speed rotation and can extend life of saw blade.
■Small aperture, high precision, and greatly reduce material consumption.
■Laser alignment function and advanced and retreated structure slightly adjusted with hand, convenient for cutting accurately.
■Automatic coolant compatible with blade could make blade lubricant and reduce the temperature of blade.
■PCL control, sawing linear velocity can be adjusted by transducer motor and sawing feeding speed also can be adjusted by hydraulic stepless adjustment. This greatly promotes production efficiency.
■Key machine, hydraulic pressure and electric components are chosen famous products domestic and abroad.

Specifications:



sawing force (mm)

round steel

90 °

Φ 75 mm ~ Φ 660 mm

45 °

Φ 75 mm ~  Φ 660 mm

H beam /

square steel

90 °

200x75 mm~1250 x 600 mm

45 °

200 x 75 mm~85 0 x 6 00   mm

saw blade size (mm)

T hickness :1.6    W idth :54   Length : 83 00

saw blade lineal speed   ( m/min )

20 ~ 80 ( adjustable )



M otor power

saw blade

11 kw

hydraulic

2.2kw

rotary table

0.04kw

cooling system

0.12kw

bench height

800mm

feeding speed

stepless feeding

rotation angle

 45°



Overall dimension

Width: 4280 mm

Length: 2 560 mm

Height: 2 72 5mm

gross weight of machine

6 8 00kg

Total power

18kW
