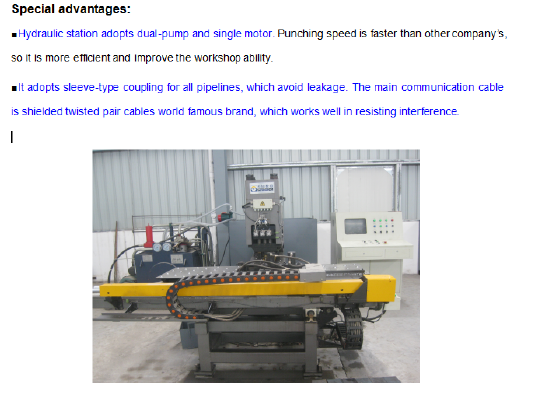

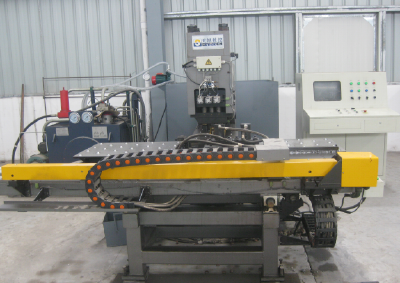

TPP103 CNC Hydraulic Punching & Marking Machine for Plates

TPP103 CNC Hydraulic Punching & Marking Machine for Plates

  • Min.Order Quantity: 1 Set
  • Supply Ability: 20 Sets per Month
  • Port: QING DAO
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2010-02-08
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  16
  • Place of Origin:  CHINA
  • Brand Name:  SUNRISE
  • Model Number:  TPP103
  • Weight: 5420.000 kg

Applicable industry:
Used for punch and mark of joint plate in the field of iron tower. It is also used to punch and mark metal plate of other trade.

Product feature:
1. The machine-frame is made by C-type plate welding, with good rigidity and big handling space. The machine sets three die-stations (among them, one is the marking die-station), automatic switching die-stations. Clamping system can adapt to different work piece, with zero baffles as datum mark, and work piece supported by rolling-ball working table. Axis X & Y action should be controlled by servo motor and ball-screw driving, and double-axis CNC system controls the position of punching, so as to make the whole machining process automatically; operator may input the sizes of work piece to computer for repeated calling program in the future.
2. Adopt CNC technology, servo motor in feeding, with high efficiency, stable work piece precision.
3. Important functional components adopt modular assembly, easy to repair it.
4. Carry out punching, marking and drilling on the one plate.
5. Drilling unit has the functions including rapid falling, slow work-feeding and quick feeding back to improve working efficiency.
6. Easy programming, may input the diameter of holes, position and the quantity of work piece to computer, and also may use the program generated by lofting software, or adopt direct conversion CAD/CAM.
7. With function of self-diagnosis for failures.
8. Lighten the working strength of workers.

Product Basic Parameter

Model

TPP103

Max size of work piece  L×W (mm)

1500×800

Max. diameter of punching (mm)

Φ26

Plate thickness of punching (mm)

5 2 5 (Q 235)

Punching force (KN)

1000

Marking force (KN)

800

Min. distance between hole and plate edge (mm)

25

Dimensions of characters (mm)

14×10×19 By customers’ request

Quantity of character

12

Die-stations

3

Precision

Accordance with GB2694

Programming mode

Input by keyboard, RS232 interface, floppy disk and USB interface

Overall dimensions  L×W×H (mm)

3200×3000× 19 00
