- Size: 25
- Place of Origin: CHINA
- Brand Name: SUNRISE
- Model Number: TSWZ1000
- Weight: 9000.000 kg
Applicable industry:

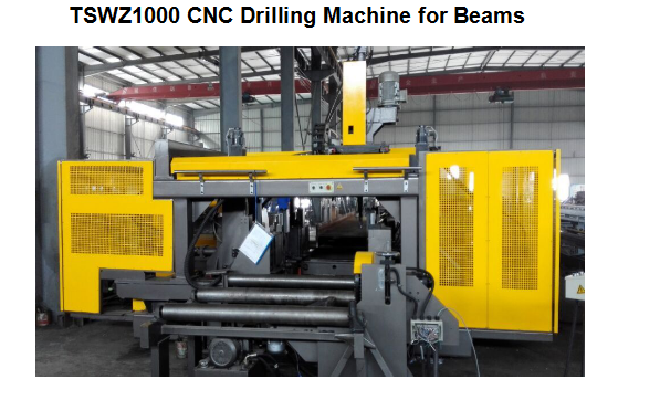

Used for the drilling processing of H-shape steel, box beam and channel steel of steel structure, bridge, three dimensional garage and petrol platform. It is designed for medium size steel fabricators desiring to increase profitability and throughput (tons-per-month) in today’s extremely competitive market.
Product feature:
1. Equipped with three drilling head, which can provide high efficient drilling capacity with wide range of hole diameters. All these 3 drilling units can work simultaneously on the web and flanges of the beam.
2. Three drilling head can drill holes simultaneously, and adopt self-controlled stroke drilling head. No need to set thickness of work piece and length of drilling, automatically finish the transfer of rapid feeding and work feeding, and with high efficiency.
3. CNC Controlled marking unit being equipped on the unloading roller to mark pre-programmed numbers/characters on the flange of the beam. The marking depth is 1.5mm, which is clear enough after surface treatment like sand/shot blasting, and HD Galvanizing.
4. PLC systems, LCD screen display, programming Microsoft based on WINDOWS platform, fast and convenient programming, and visual previewing.
5. Programming Microsoft is not depend on CPU equipment, can be installed in any computer to carry out programming off-site, direct copy or network transmission to the equipment to realize.
6. Each drilling head, equipped with professional main shaft speed-reducing-motor from famous products abroad.
7. Main machine, hydraulic pressure, electric components are famous products domestic and abroad.
Model | T SWZ 1000 | |||
Work piece size | H-beams Max. (web width × flange height) (mm) | Max. | 1 00 0x 5 00 | |
Min. | 150x75 | |||
Min. feeding Length (mm) | 1 000 mm | |||
Thickness of web & flange (mm) | 80 | |||
Drilling dia.(mm) | Vertical drilling | Φ12~Φ 33.5 | ||
Horizontal drilling | Φ12~Φ26.5 | |||
Drilling spindles | No. of spindle | One spindle on each of three sides (top,left,right) Total: 3 spindles | ||
Rotation speed (stepless speed adjustment) (rpm ) | 180~650 | |||
S pindle motor power (kW) | 3 x 4 kW | |||
Max. feeding stroke (mm) | (Left & right):140 ( Vertical ): 325 | |||
Feeding speed(mm/min) | 20~300 | |||
Movement of left/right spindle (mm) | In the direction of workpiece length:520 | |||
Above vertical base-level:30~ 4 70 | ||||
Movement of top spindle (mm) | In the direction of workpiece length:520 | |||
Beyond horizontal base-level: 45~ 910 | ||||
Overall dimensions (L×W×H) (mm) | 4 55 0x3050x3520 | |||
D rilling head cooling way | C ompressed air + atomized drilling fluid | |||
A ir pressure (M p a) | 0.6 | |||
X axis servo motor power | 5 kW | |||
O il pump motor power | 2.2kW | |||
O il pump pressure | 3.5kW-4MPa | |||
P rocessing precision | A llowance of neighbor holes distance <±0.5mm In length of 10m, allowance of any holes distance <±1mm | |||
Total power (kW) | 34 | |||
Machine weight (kg) | Appr. 7 0 00 | |||
