- Size: 12
- Place of Origin: CHINA
- Brand Name: SUNRISE

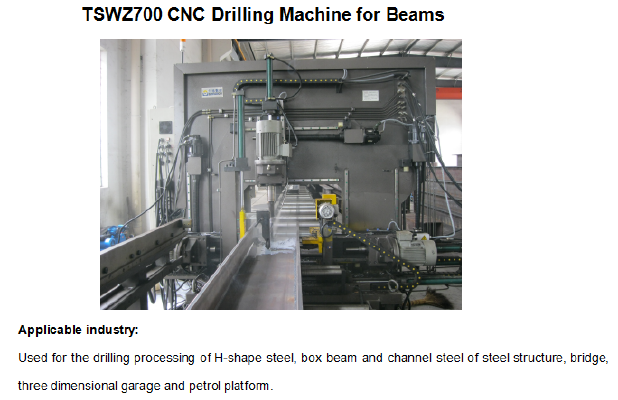

- Model Number: TSWZ700
- Weight: 7000.000 kg
Product feature:
1.Equipped with three drilling head, the drilling procedure finished after the work piece going through the equipment.
2. Three drilling head can drill holes simultaneously, and adopt self-controlled stroke drilling head.
3. No need to set thickness of work piece and length of drilling, automatically finish the transfer of rapid feeding and work feeding, and with high efficiency.
4. CNC & PLC systems, LCD display, programming Microsoft based on WINDOWS platform, fast and convenient programming, and visual previewing.
5. Programming Microsoft is not depend on CPU equipment, can be installed in any computer to carry out programming off-site, direct copy or network transmission to the equipment to realize.
6. Each drilling head, equipped with professional main shaft speed-reducing-motor from famous products abroad.
7. Main machine, hydraulic pressure, electric components are famous products domestic and abroad.
Product Basic Parameter:
Mode l | T S W Z7 0 0 |
H-beam s Max. (w eb heigh t × flang e width) (mm) | 700x400 |
M in. length of workpiece (mm) | 1800 |
M ax. weight of workpiece (kg) | 5000 |
Drilling dia. (mm) | Φ 12.5~ Φ 30 |
Drilling head f eeding speed(mm/min) | 20 ~3 00 |
N o. of spindle | One spindle on each of three sides (top,left,right) Total: 3 spindles |
R otation speed (stepless speed adjustment) (r pm ） | 180~560 |
F eeding movement speed (mm/min) | 20~300 |
Max. feeding stroke (mm) | 300 |
P ower of each spindle (kW) | 4 |
No. of CNC axis | 4 |
Stroke of left/right spindles (Above vertical base-level) (mm) | 20~420 |
Stroke of top spindle (Beyond horizontal base-level) (mm) | 30~630 |
M orse taper | 2#, 3# |
T otal power (kW) | 27 |
F eeding type | NC carriage feeding, 20-300mm/min |
Overall dimension s ( L×W×H ) (mm) | 3600x1500x2500 |
T otal weight (kg) | ≈7000 |
